A versatile choice for simpler protection
The CB1 is EZVIZ’s new flexible and reliable indoor battery camera that can basically go anywhere inside your home. Thanks to its wire-free design and adjustable magnetic stand, you will easily find the perfect spot to get the most areas in your living space. This camera also comes packed with several essential features, including great video quality and night vision, human motion detection, two-way communication, sleep mode, and more.
No strings attached
Powered by a built-in 1,600mAh battery, the CB1 helps you add peace of mind anywhere indoors. It requires no power or data cables to set up, and runs up to 40 days on a full charge¹ to deliver reliable protection – even during electrical outages.

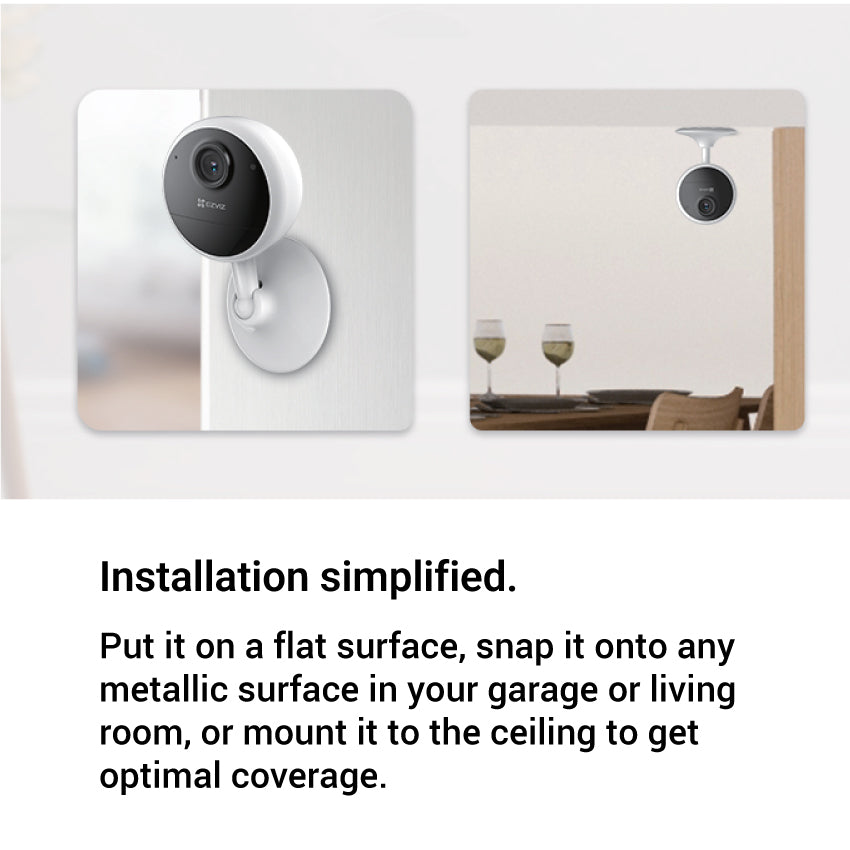

Installation simplified
With the CB1, you can enjoy multiple placement options. Put it on a flat surface, snap it onto any metallic surface in your garage or living room, or mount it to the ceiling to get optimal coverage.
Smarter notifications that matter
Integrating a PIR sensor with a human-shape detection algorithm, theCB1 sends alerts for important indoor activities.
Communicate at anytime
Wherever you are, you can talk to your family members or comfort your pets by simply tapping on the EZVIZ App.
Great vision, day and night
The camera renders vivid, clear details in 1080p video and protects your sweet dreams with sharp night vision.
Dual video storage options
Safely store important moments or cute memories on a large local storage card, or by subscribing to the EZVIZ CloudPlay.
Hands-free control
With integration to your voice assistants, you can pull up the video feed by simply saying “Alexa” or “Hey Google.”
H.265 video technology
Creates a smoother viewing experience while only using about50% of the data storage space required by cameras with H.264.
Warranty
Limited 3 years warranty
|
| Image Sensor |
1/3 ” 2-Megapixel Progressive Scan CMOS Sensor |
| Shutter Speed |
Self-Adaptive Shutter |
| Lens |
2.8mm@ F2.2 Viewing angle: 113° (Diagonal), 90° (Horizontal), 50° (Vertical) |
| Minimum Illumination |
0.1 Lux |
| Lens Mount |
M12 |
| Day & Night |
IR-cut Filter with Auto Switch |
| DNR |
3D DNR |
| Night Vision |
Up to 5 m / 16 ft |
|
| Smart Alarm |
Supports smart human motion detection |
| Customized Alert Area |
Supports |
| Two-way Talk |
Supports |
|
| Local Storage |
Supports microSD card (Up to 512 GB) |
| Cloud Storage |
Supports EZVIZ CloudPlay storage (subscription required) |
|
| Max. Resolution |
1920 × 1080 |
| Frame Rate |
15fps. Self-Adaptive during Network Transmission |
| Video Compression |
H.265 / H.264 |
| Video Bit Rate |
Full HD; Hi-Def; Standard |
| Audio Bit Rate |
Self-Adaptive |
| Max. Bitrate |
1 Mbps |
|
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20 MHz |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Wired Network |
Does not support |
| Minimum Network Requirement |
2 Mbps |
|
| Operating Conditions |
-10°C to 45°C (14°F to 113 °F ), Humidity 95% or Less (Non-condensing) |
| Power Supply |
DC 5V/1A (Purchased Separately) |
| Battery Capacity |
1600 mA |

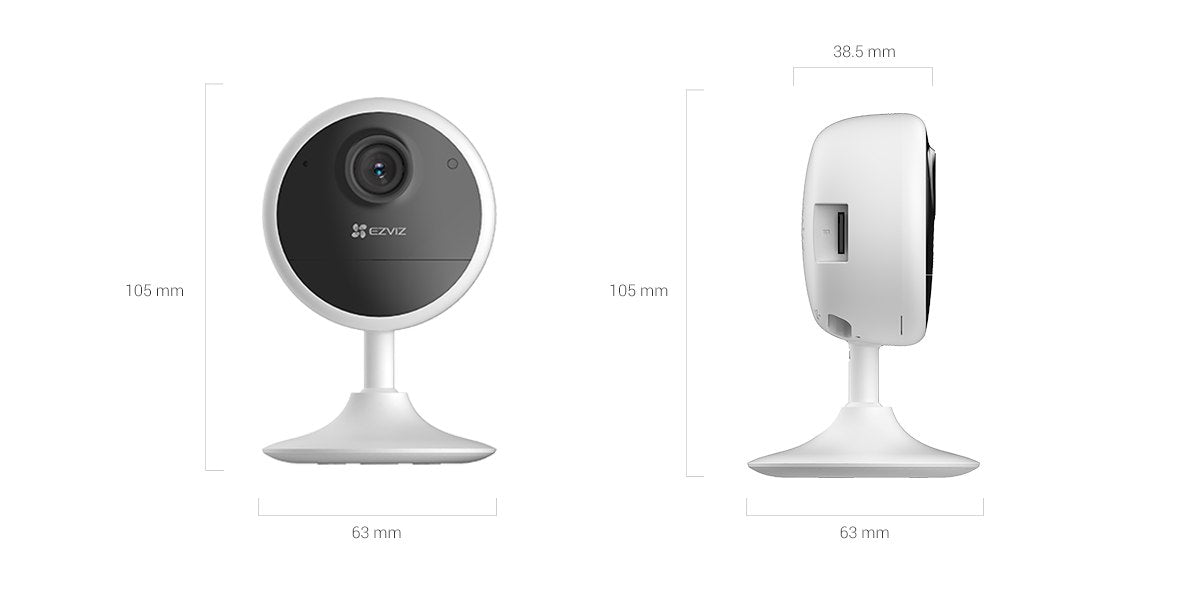

| Dimensions |
67 × 63 × 105 mm (2.64 × 2.48 × 4.13 inch) |
| Packaging Dimensions |
91.5 × 87.5 × 149 mm (3.60 × 3.44 × 5.87 inch) |
| Bare Weight |
135 g (4.76 oz) |
|
| In the box |
- CB1 Camera |
| - Power Cable |
| - Foam Sticker |
| - Mounting Metal Plate |
| - Regulatory Information |
| - Quick Start Guide |
|
| Certifications |
CE / WEEE / RoHS / REACH / UL |
Data from EZVIZ Lab’s test results under standard conditions, based on the usage of 5 minutes per day, including activities of camera detection and auto-triggered recording. Power-saving mode can also be enabled to prolong the battery life. The actual battery life may vary due to environmental factors and the frequency of camera activities.
Google Assistant is not available in certain languages and countries.
The local storage card must be purchased separately. The cloud storage service is only available in certain markets. Please verify the availability before making a purchase.
Data from EZVIZ Lab’s test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, as well as other environmental factors.
